porcelain tiles deck pedestal self-leveling paving support system for outdoor floating floor
Description
For paving
For decking

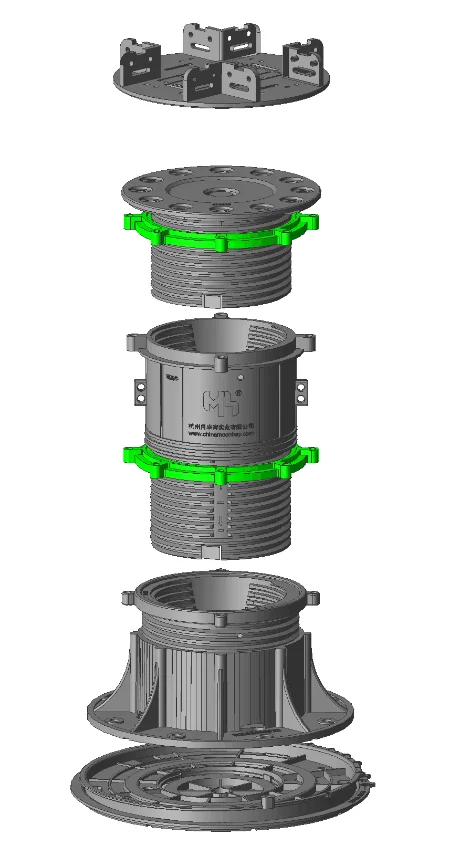

Pedestal assemble photo
Spacer Tab
To give the desired opening between tiles (for water drainage and vertilation)Thickness option: 2mm / 3.5mm / 5mm / 8mm / 10mm
Shim
Anti-Slip, reduce impact, absorb shock, compensate floor thickness differenceThickness option: 1mm / 2mm
Multi-function Spacer Tab
For polygonal tile useThickness Option: 2mm / 5mm / 8mm / 10mm
Stackable Rubber Pad
Stackable Rubber Pad
Wall Side Steel Clips
wallside buffer steel clip used for against the wa
Side Closure Steel Clip
Use for vertical tile to close step sideType option: steel clip 02 on pedestal top / steel clip 03 under pedestal base
Clip suitable for 2cm thickness tile
Clip suitable for 2cm thickness tile
Wind-proof Clips with Screw
Use for fixing the plane materiel to prevent the wind move away by insert clip into pre-cut paver tile
Wind-proof Washer with Screw
Use for fixing the plane materiel to prevent the wind move away by screw the washer on top of paver tile corne
Self-leveling top slope adjuster
To self-level 0~5% slope to make a perfect leveling on the floor surface
Aluminum Rail System
Aluminum joist beam size:Clik cradle size:
Spacer tab size
Spacer tab size
Fix collar
Fix and lock the thread after adjustment, increase stability.Standard green color
15mm Top Pad
To add 15mm higher by stack onto pedestal top.Stackable （4 max）on pedestal top
Single-side Joist cradle
To hold timber batten, composite battens, aluminum or steel support sections joist, wooden beam.Singe side joist cradle
(suitablefor beam size 20-90mm)
(suitablefor beam size 20-90mm)
40mm Joist cradle
To hold timber batten, composite battens, aluminum or steel support sections joist, wooden beam.40mm gap with cross way (suitable
for beam size 20-40mm);
for beam size 20-40mm);
50mm Joist cradle
To hold timber batten, composite battens, aluminum or steel support sections joist, wooden beam.50mm gap with cross way (suitable
for beam size 20-50mm);
for beam size 20-50mm);
60mm Joist cradle
To hold timber batten, composite battens, aluminum or steel support sections joist, wooden beam.60mm gap with cross way (suitable
for beam size 20-60mm);
for beam size 20-60mm);
80mm Joist cradle
To hold timber batten, composite battens, aluminum or steel support sections joist, wooden beam.80mm gap with cross way (suitable
for beam size 20-40mm);
for beam size 20-40mm);
Self-leveling top slope adjuster
To self-level 0~5% slope to make a perfect leveling on the floor surface
Aluminum Joist Beam with Clik Cradle
Aluminum joist beam size:Clik cradle size:
IPE Deck Connector
To hold timber batten, composite battens, aluminum or steel support sections joist, wooden beam.40mm gap with cross way (suitable
for beam size 20-40mm);
for beam size 20-40mm);
Connect Rod
To connect pedestals for excess height installations (from 800mm to 1600mm in height) or for installations requiring additional
stability.Size option: short connect rod 340mm-500mm) length;
long connect connect rod:500mm-750mm )length
stability.Size option: short connect rod 340mm-500mm) length;
long connect connect rod:500mm-750mm )length
Big Fix Collar
Installed with connecting rod to connect with MB-T pedestal
No Smell base pad
No smell,heathy,eco-friendly
Anti-slip,reduce noise,protect water membrane.
Assemble under the base of pedestal
(suitable for pedestal base dia 200mm)
Flat base rubber pad
Anti-slip,reduce noise,protect water
membrane.
Assemble under the base of pedestal
(suitable for pedestal base dia
Assemble under the base of pedestal
(suitable for pedestal base dia
200mm and 220mm
Base Slope Corrector
Rotating the upper disc to compensate 0~5% slope.Assembled under the base of the pedestals
Size option:
200mm base slope corrector
(suitable for pedestal base dia 200mm);
220mm base slope corrector
(suitable for pedestal base dia 220mm)
Size option:
200mm base slope corrector
(suitable for pedestal base dia 200mm);
220mm base slope corrector
(suitable for pedestal base dia 220mm)
For paving
For decking
Additional information
| Warranty: | 3 years |
|---|---|
| After-sale Service: | Online technical support |
| Project Solution Capability: | graphic design |
| Application: | Villa |
| Design Style: | Modern |
| Place of Origin: | Zhejiang, China |
| Brand Name: | Moonbay |
| Model Number: | MB-T-H062 |
| Type: | Flooring Accessories |
| Performance: | adjustable plastic pedestal for raised floor |
| Color: | Black |
| Raw material: | Polypropylene(PP), anti-UV etc. |
| Height Range: | 19mm-1200mm |
| Temperature: | -40℃ to +120℃ |
| Max loading: | 2000 Kgs/set |
| Application field: | Balcony,roof floor,public ground,decking,paver tiles,fountain,etc. |
| Package: | CTN+PLT |
